Sole 75

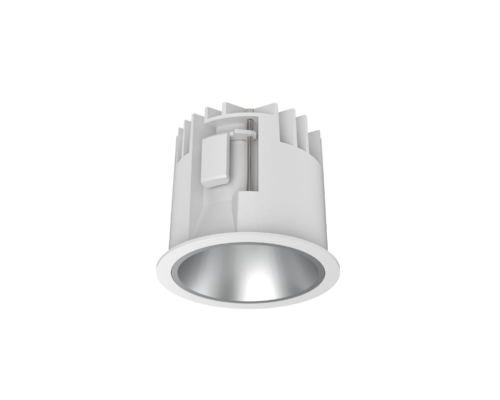

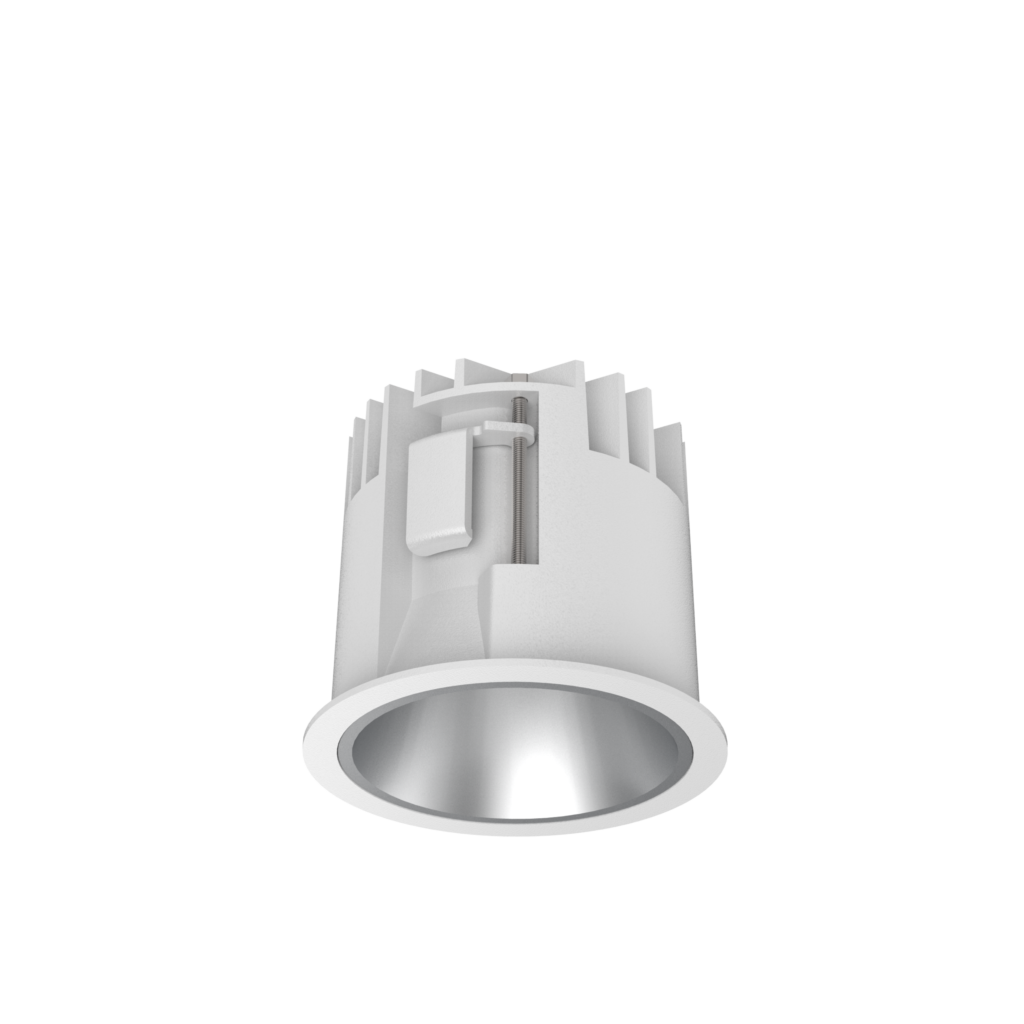

Deep housing with a great allowance of size versus performance. The recessed position of the LED light source ensures maximum visual comfort and good surface uniformity, which is allowing Sole to have large distances between luminaires. As a result, complete project costs are reduced.
Large surface and the hybrid optical lens positioned deeply inside of glare controlling reflector are main characteristics of Sole family. This combination provides utmost lighting quality and attractive appearance at the same time.
On request, a variety of color combinations can be produced, giving Sole 75 the opportunity to adapt to any architectural design concept.

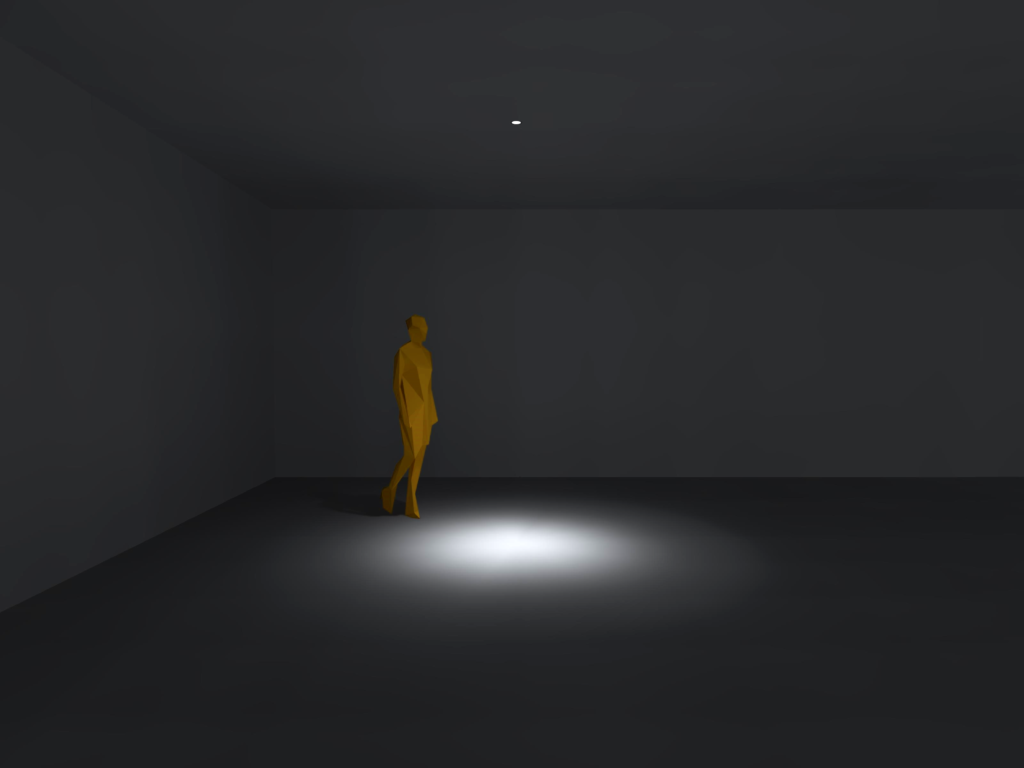

Sole 75 is available in 25° and 50° beam angles, therefore enables wide application possibilities. While 25° provides accent light, the 50° wide beam is suitable for applications requiring more general illumination. The high color rendering index (CRI) provides high quality in visual output.
01
Design features
Sole family is applicable to all typical downlight contexts with its vast range of application type, size, shape, color and beam angle alternatives which provides design freedom in project planning.
02
Optical features
A big optical lens in combination with a decorative reflector, guarantees good glare control, whilst a variety of beam angles makes Sole applicable in almost any space.
03
Mechanical features
Large aluminium housing ensures good thermal management and safe operation for up to 13W. Screw bracket installation mechanism allows flexible and safe installation.
