State-of-the-art Downlight

Meira 30

Right light for every space
State-of-the-art Downlight

Meira 30

Meira family is made with a unique reflector series designed by Bartenbach GmbH with highest optical standard and made in Austria. State-of-the-art optics combined with the highest visual comfort that any downlight can have. Meira family provides vast range of application possibilities from same size and cosmetic.


Download Technical Data Sheet


Meira reflectors are optimised for best cutoff with their specific height ratio. There is a small difference between main (beam) angle and spilled light (field) angle.


This brings higher visual comfort compared to standard reflector solutions. Also, it contributes to a strong contrast and a dramatic lighting design where it is needed.

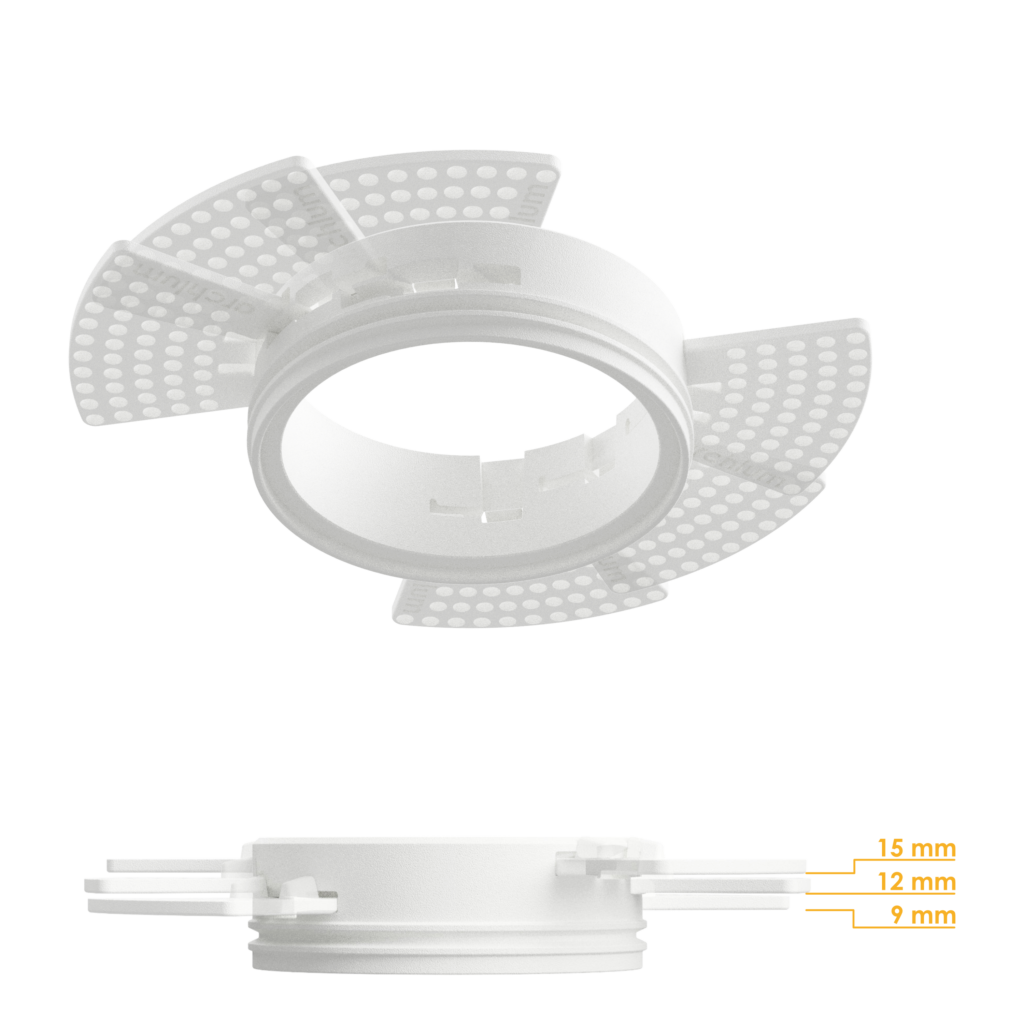

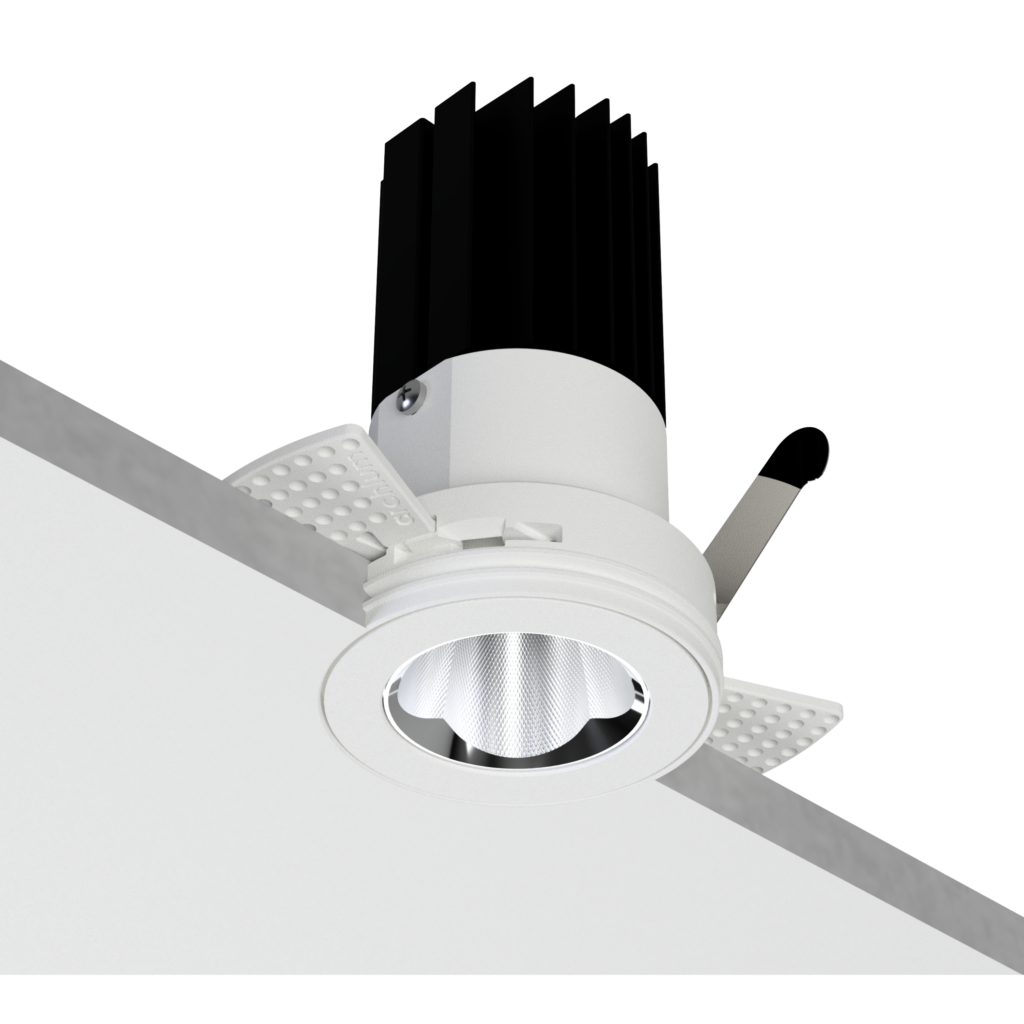

Meira enables the option of mounting without a visible frame. The trimless frame can plastered in the ceiling and painted over. By clipping screwing pad to specific location, frame can be adapted to 9mm, 12mm and 15mm false ceiling thicknesses.

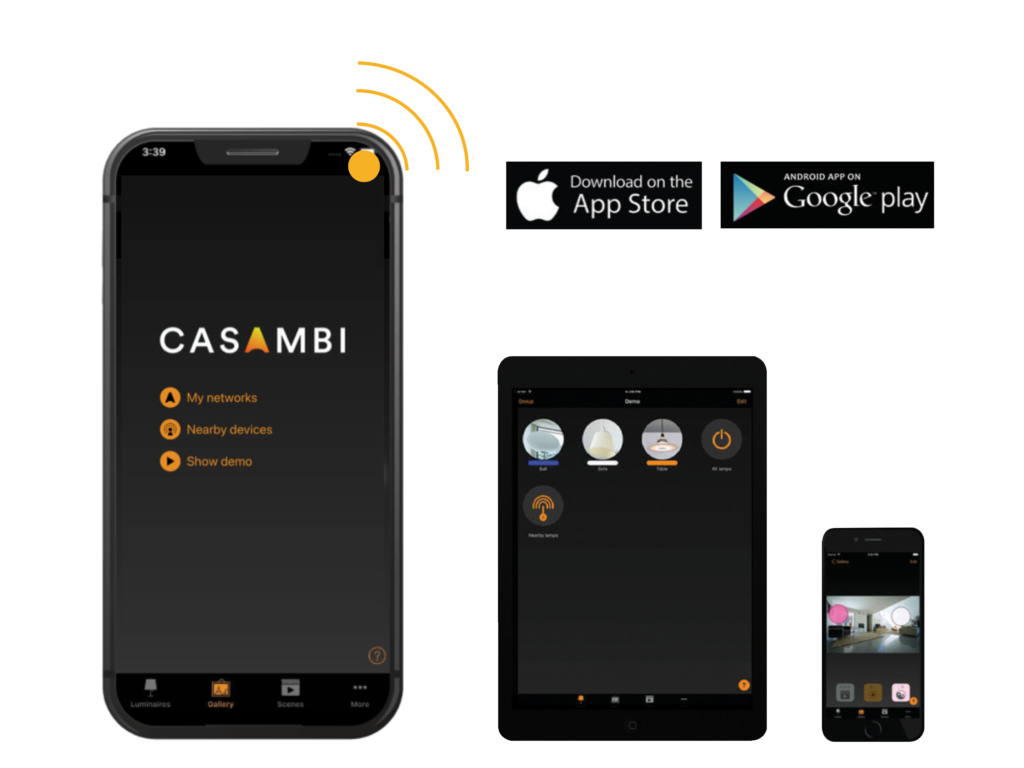

Choice of high quality control gear allows wireless communication through Bluetooth protocol so user can have remote control. User friendly open source app is available for iPhone and Android.


Design features

In the same appearance and dimension of only Ø58mm, the Meira family is providing four different light distributions. It can be used as a direct light for different ceiling heights and applications, as well for wall washing.


Optical features

Micro-facets design allows perfect control of light and provides best uniformity and visual comfort.


Mechanical features

Housing completely made of aluminium is robust and long lasting. The large heatsink of extruded aluminium is designed to promote air flow and allows good thermal performances for longer product lifetime.
