Pinhole light

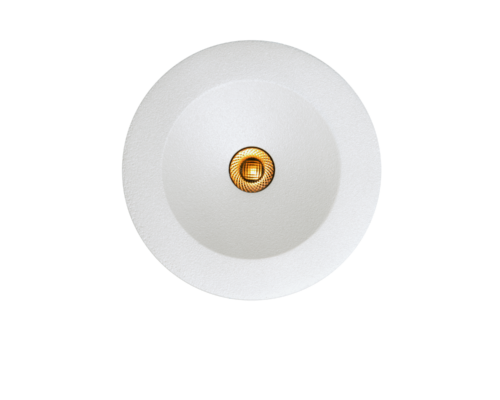

Iris range has a pure minimalist shape and a light aperture of only 10 mm. Deeply recessed in its optical core, Iris conceals a unique focal lens designed by Bartenbach. Optical knowledge and Austrian precision in development and production are combined in a virtually glare free solution.


Download Technical Data Sheet

Iris maintains a minimalist approach to the optical system. Thanks to the advanced technology of the product, high efficiency is transformed into brilliant light. UGR could be reduced effectively so the maximum visual comfort is achieved.

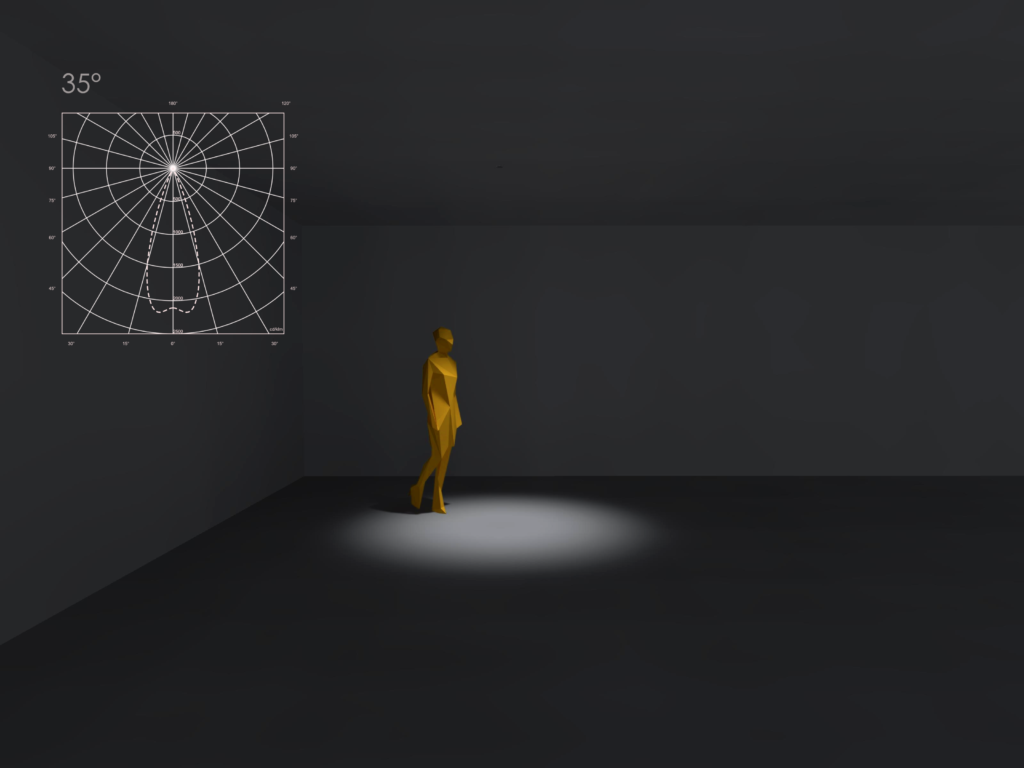

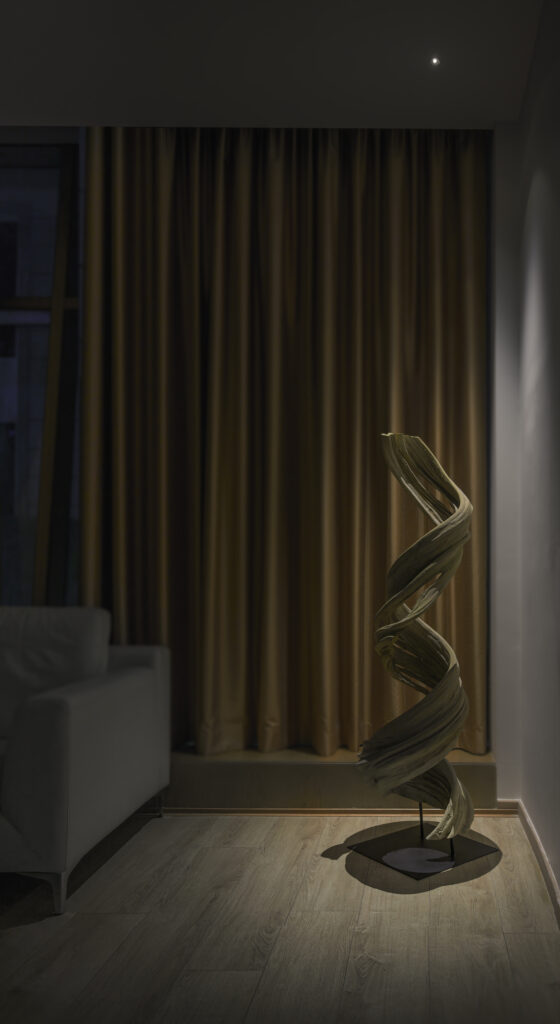

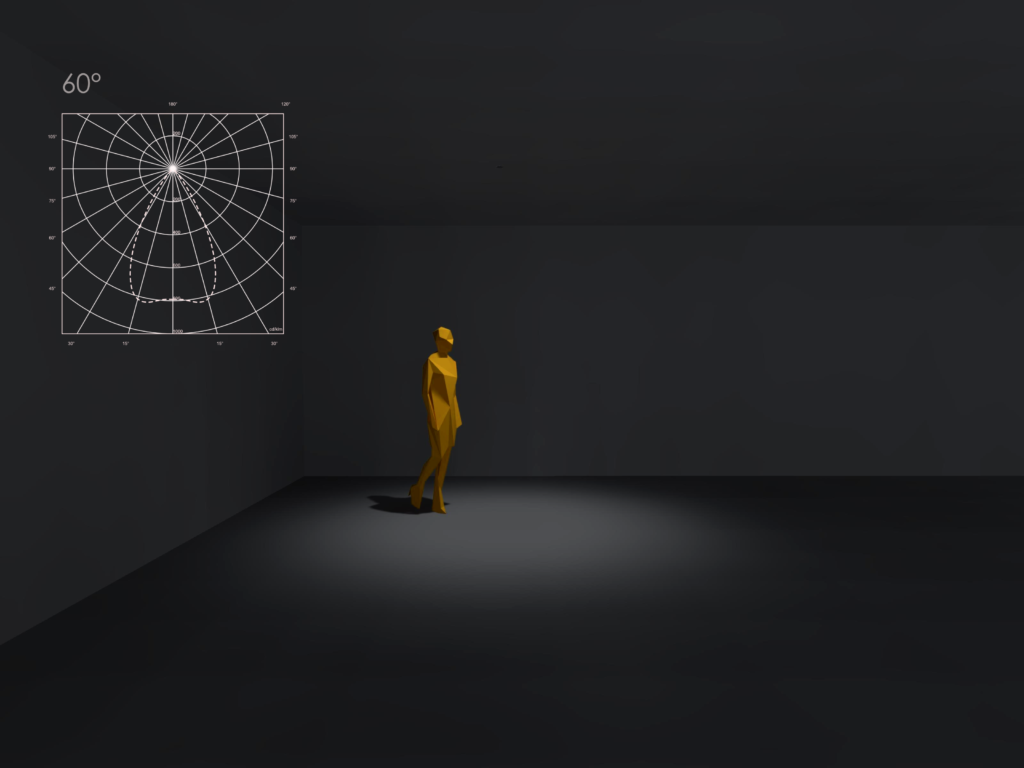

Available in two different beam angles: 35° and 60°, which is making the Iris suitable for highlighting objects through spot light as well as for diffused general lighting purposes. The high color rendering index (CRI) provides high quality in visual output. Each luminaire is available in three different correlated color temperatures (CCT): 2700K, 3000K and 4000K.


Design features

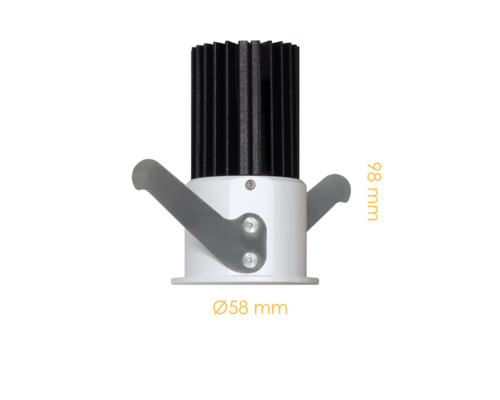

The Iris range has a pure minimalist shape and a light aperture of only Ø10 mm, but the power of a real downlight. Created with the simplest lines to give the minimalist look of the product, the design concept of  Iris allows luminaire to smoothly integrate into all typical lighting application scenes.


Optical features

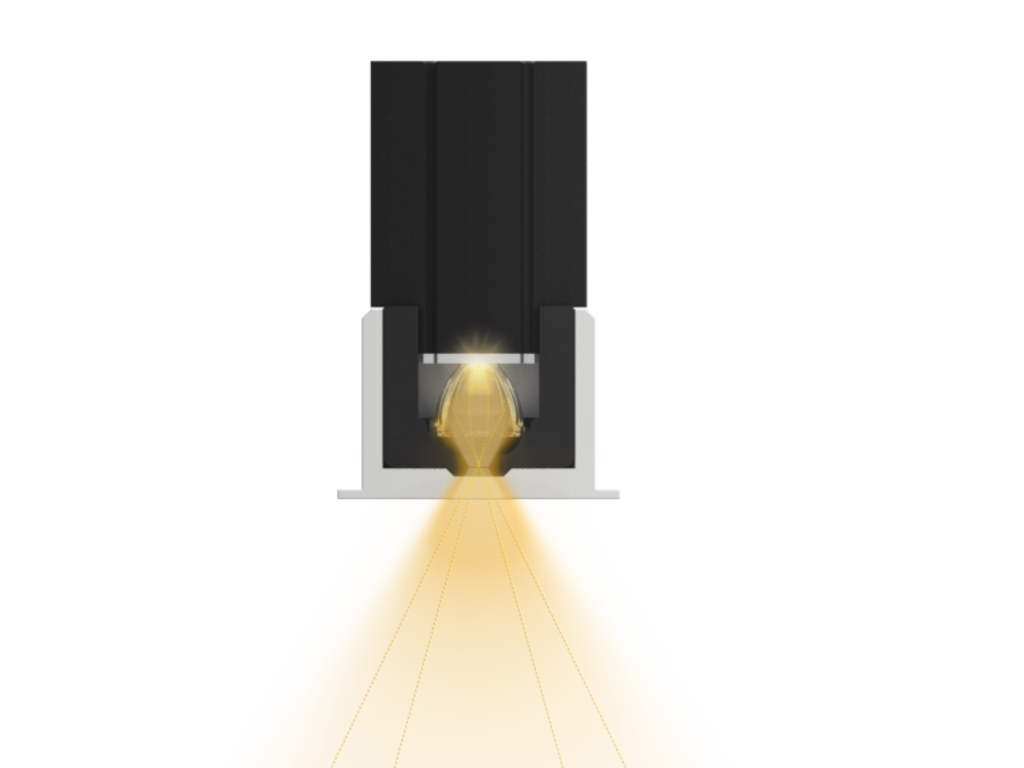

The Iris range consists of two different lighting distributions (35° and 60°) but with the same size and appearance, which makes it the perfect choice for catching the same look in  different ceiling heights and lighting effects. Perfect control of light provides best uniformity, low UGR and high visual comfort.


Mechanical features

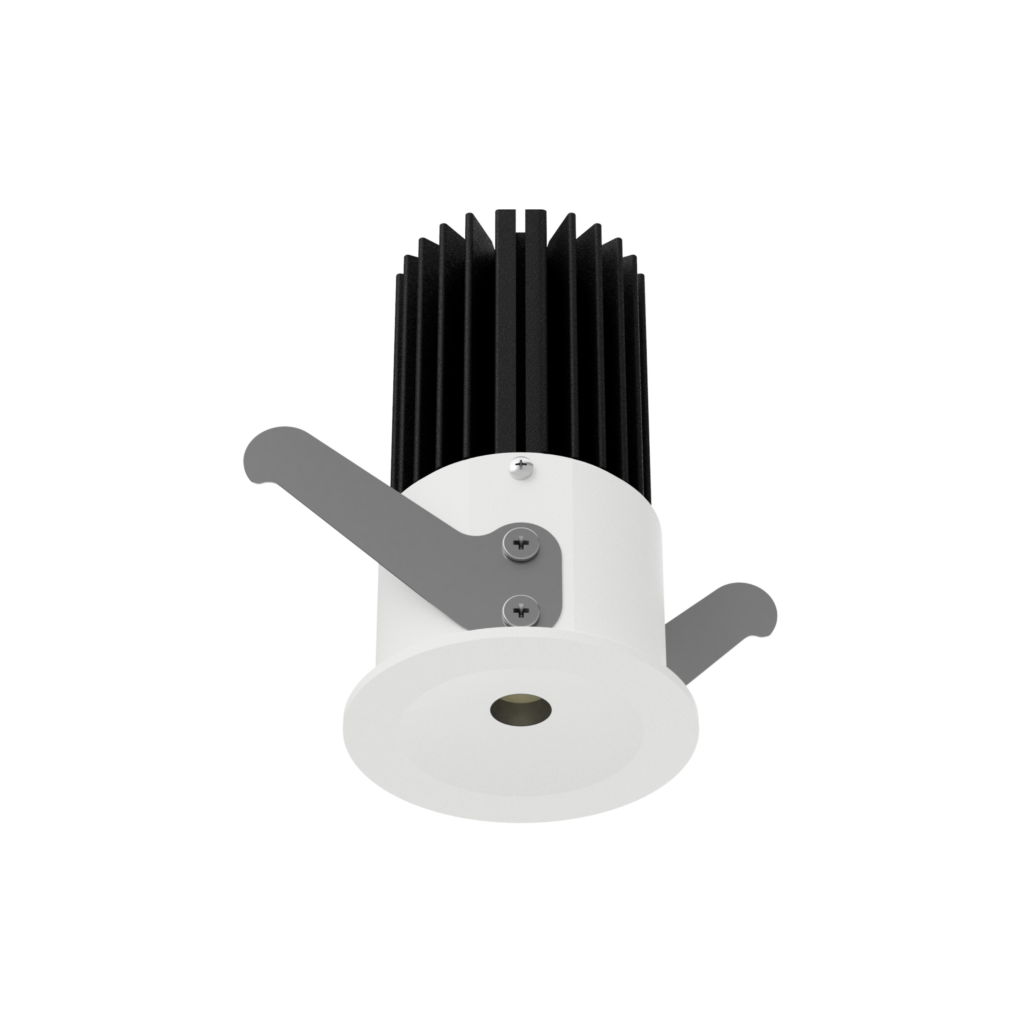

Robust mechanical design is providing longevity and high level of mechanical protection.The heat sink made of die-cast aluminium provides very good thermal performance with maximum product life. High efficiency achieved thanks to the high temperature poly carbonate with pure aluminium PVD reflective coating. Iris provides IP54 level dust and water ingress protection.
